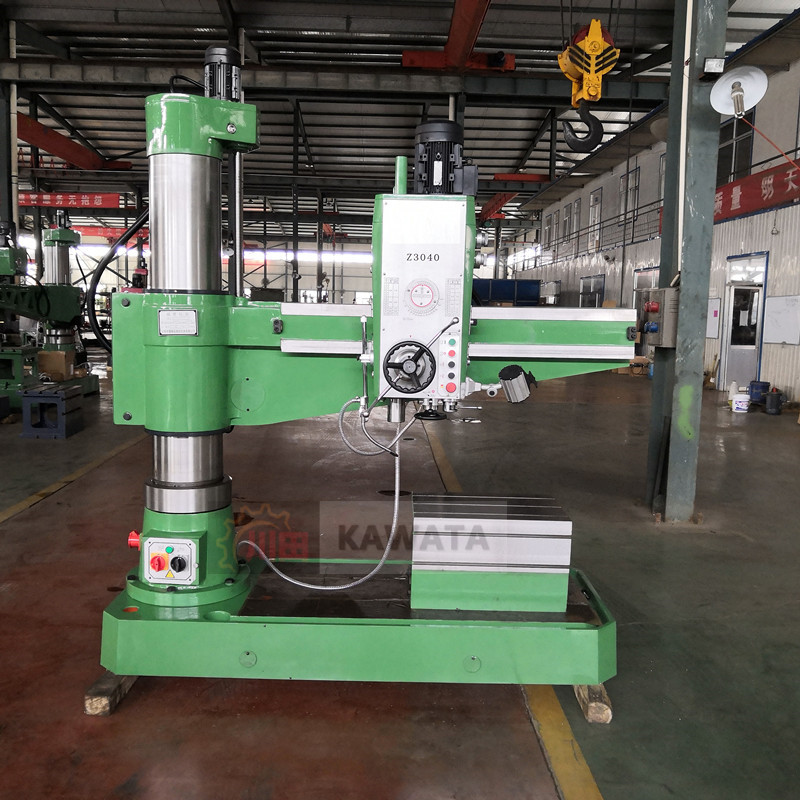

搖臂鉆床廣泛應用于單件和中小批生產中，加工體積和重量較大的工件的孔。搖臂鉆床加工范圍廣，可用來鉆削大型工件的各種螺釘孔、螺紋底孔和油孔等。搖臂鉆床用于加工笨重工件或多孔工件上的中小型孔。
Rocker drilling machine is widely used in single and small batch production, processing large volume and weight workpiece holes. Rocker drilling machine has a wide range of processing, which can be used to drill various screw holes, thread bottom holes and oil holes of large workpieces. Rocker drilling machine is used to process small and medium-sized holes on heavy workpieces or multi-hole workpieces.
主要技術參數 | SPECIFICATIONS | Z3040X14/1 |
鉆孔大直徑 | Max. drilling dia(mm) | 40 |
主軸線至立柱母線距離 | Spindle center to column generating distance | 350-1370 |
主軸箱水平移動距離 | Distance headstock horizontal movement(mm) | 1015 |
主軸下端面至底工作臺面距離 | Distance from spindle nose to table surface(mm) | 260—1210 |
主軸錐孔（莫氏） | Spindle Cone | 4 |
主軸轉速級數 | Spindle speed series | 16 |
主軸轉速范圍(r.p.m) | Range of spindle speeds(r.p.m) | 32-2500 |
主軸行程 | Spindle travel(mm) | 270 |
主軸進給量級數 | Spinde feeding step | 8 |
主軸進給量范圍(r.p.m) | Spinde feeding range(r.p.m) | 0.10-1.25 |
搖臂升降速度(mm/m) | Rocker Lifting speed （m/min） | 1.27 |
搖臂回轉角度° | Rocker rotary angle | ±180° |
主軸允許大進給力(N) | Maximum resistance to the spindle(N) | 12250 |
主電機功率 | Main motor power (kw) | 3 |
升降電機功率 | Movements motor power(kw) | 0.75 |
機床重量 | Machine weight | 2200 |
外形尺寸 | Overall dimensions(mm) | 2053x820x2483 |
